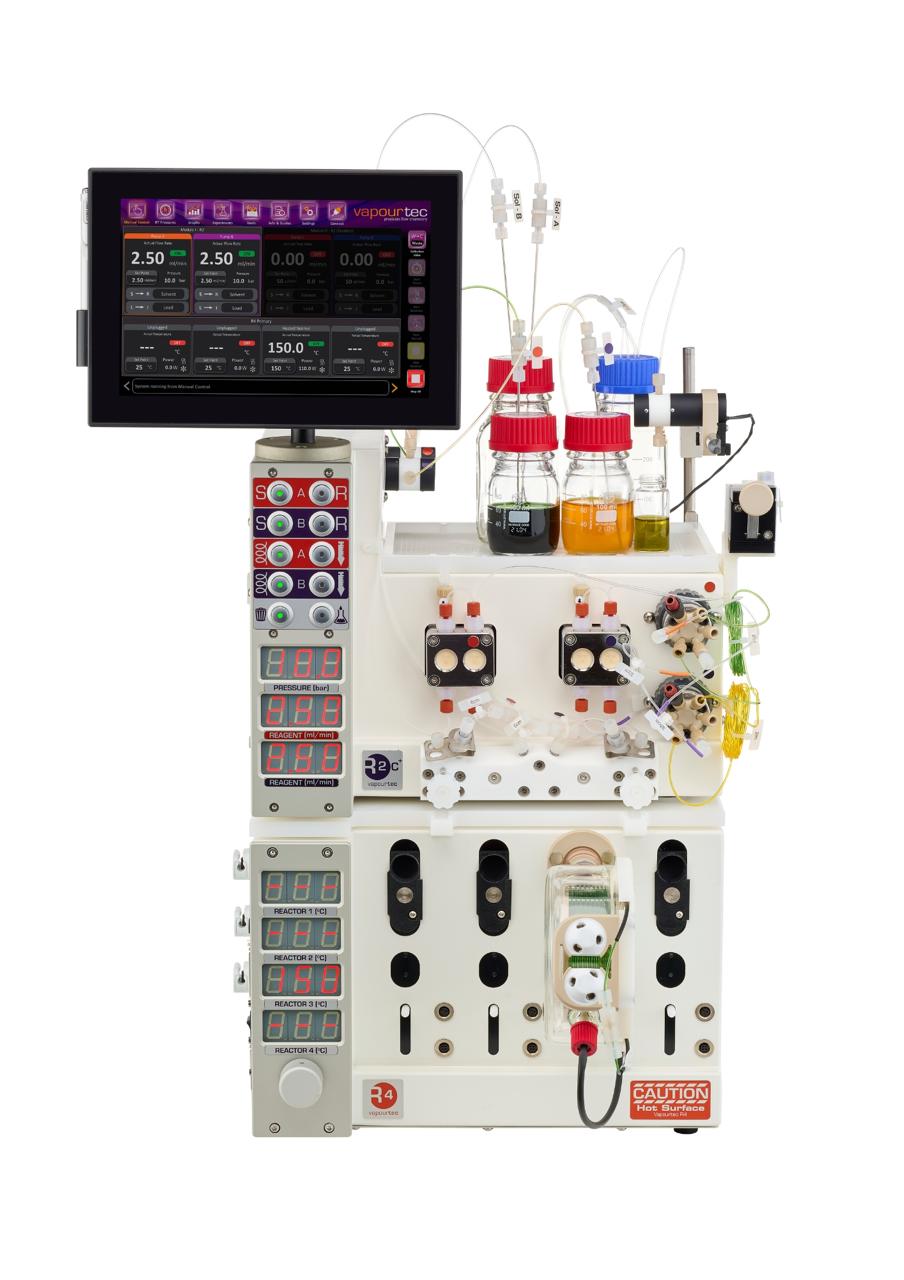

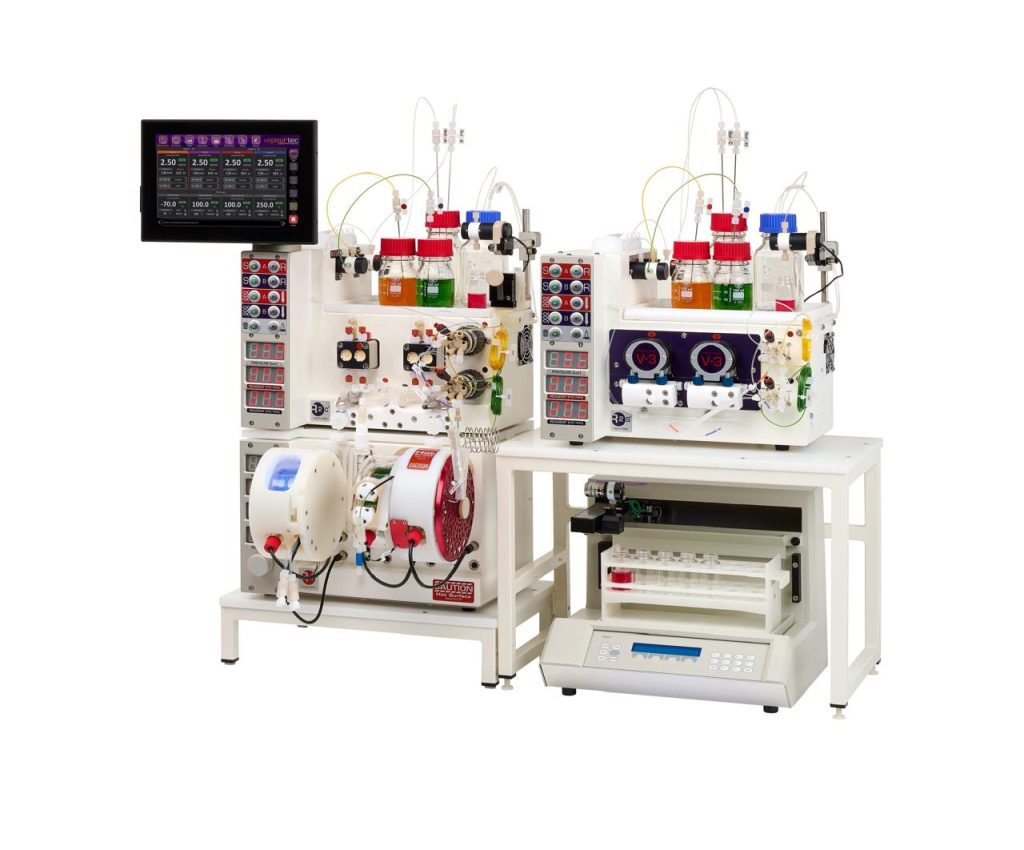

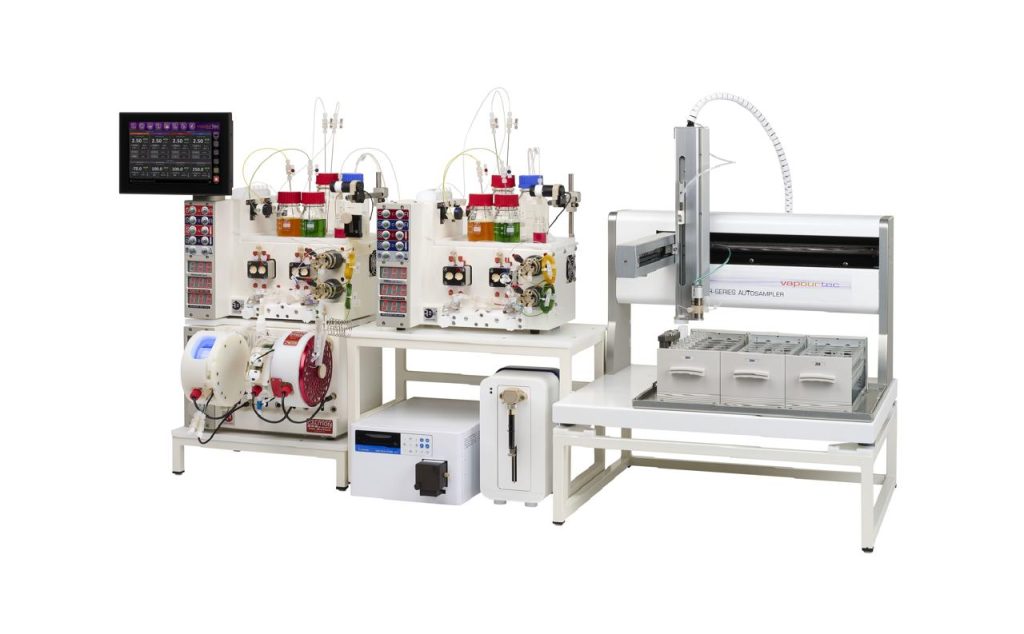

Vapourtec R-Series - The Benchmark for Modular Flow Reactors

The world’s most trusted modular flow chemistry platform for laboratory development and pilot-scale validation,
now with full integration, training, and support by PI-INC in India.

Request Datasheet
Technical Brochure

Executive Summary

The Vapourtec R-Series sets the global standard in modular flow chemistry. Built for flexibility and reliability, it enables safe execution of hazardous chemistries, photochemical transformations, and telescoped multi-step syntheses.

With modular add-ons and integrated control software, it adapts to diverse chemistries without requiring expensive re-engineering. PI-INC is Vapourtec’s official partner in India, ensuring clients get not just equipment supply, but full lifecycle services — installation, PAT integration, training, and preventive maintenance.

Key Capabilities

  • Flexible Architecture

    Swap modules for different reaction types.

  • High Performance

    Precise flow, temperature, and pressure control.

  • Photochemistry Ready

    LED/UV modules for photon-driven reactions.

  • Data-Driven Control

    Recipe-based automation with full digital traceability.

  • Scalability

    Lab-to-pilot, with direct migration to Chemtrix and Coflore systems.

Technical Specifications

  • Flow Range

    0.1 – 50 mL/min (module dependent).

  • Pressure

    Up to 20 bar.

  • Temperature

    -70 °C to +250 °C.

  • Reactor Types

    PTFE/FEP coils, stainless steel static mixers, quartz reactors for photochemistry.

  • Control Software

    Recipe automation, OPC-UA compatibility.

  • Footprint

    600–1200 mm (W) × 600 mm (D) × 1200 mm (H).

Applications

  • Pharmaceutical APIs

    Swap modules for different reaction types.

  • Hazardous Chemistry

    Precise flow, temperature, and pressure control.

  • Photochemistry

    LED/UV modules for photon-driven reactions.

  • Telescoped Synthesis

    Recipe-based automation with full digital traceability.

  • Academic & Research Labs

    Lab-to-pilot, with direct migration to Chemtrix and Coflore systems.

  • 1

    Inline HPLC, FTIR, UV-Vis probes.

  • 2

    SCADA integration via OPC-UA gateways.

  • 3

    Automated sampling and closed-loop recipe control.

  • 4

    Data integrity compliant with cGMP and regulatory standards.

  • 1

    Power Supply: 230V AC, 50 Hz.

  • 2

    Cooling: Chilled water for photomodules.

  • 3

    Gas: Nitrogen or compressed air for inerting.

  • 4

    Bench Space: Minimum 1.2 m × 0.6 m.

  • 1

    Tubing sets (PTFE, FEP).

  • 2

    O-rings, seals, gaskets.

  • 3

    Photomodule LEDs (lifespan: 10,000–30,000 hours).

  • 4

    Inline filters and calibration kits.

Support & Warranty

OEM warranty: 1 year standard
(extendable).

PI-INC Preventive Maintenance Contracts:
Basic: Annual calibration & service.
Premium: 24/7 helpline + 48h onsite support.

Operator training modules for chemists and engineers.

FAQs

Can Vapourtec handle corrosive reagents like strong acids?

Yes, PTFE/FEP reactors are compatible with most corrosives. Material compatibility checks are done before deployment.

Is Vapourtec suitable for GMP environments?

Yes, with SCADA integration and cGMP-compliant data logging.

Can it be scaled to production?

R-Series is lab-to-pilot. For production scale, Chemtrix and Coflore provide seamless migration.
